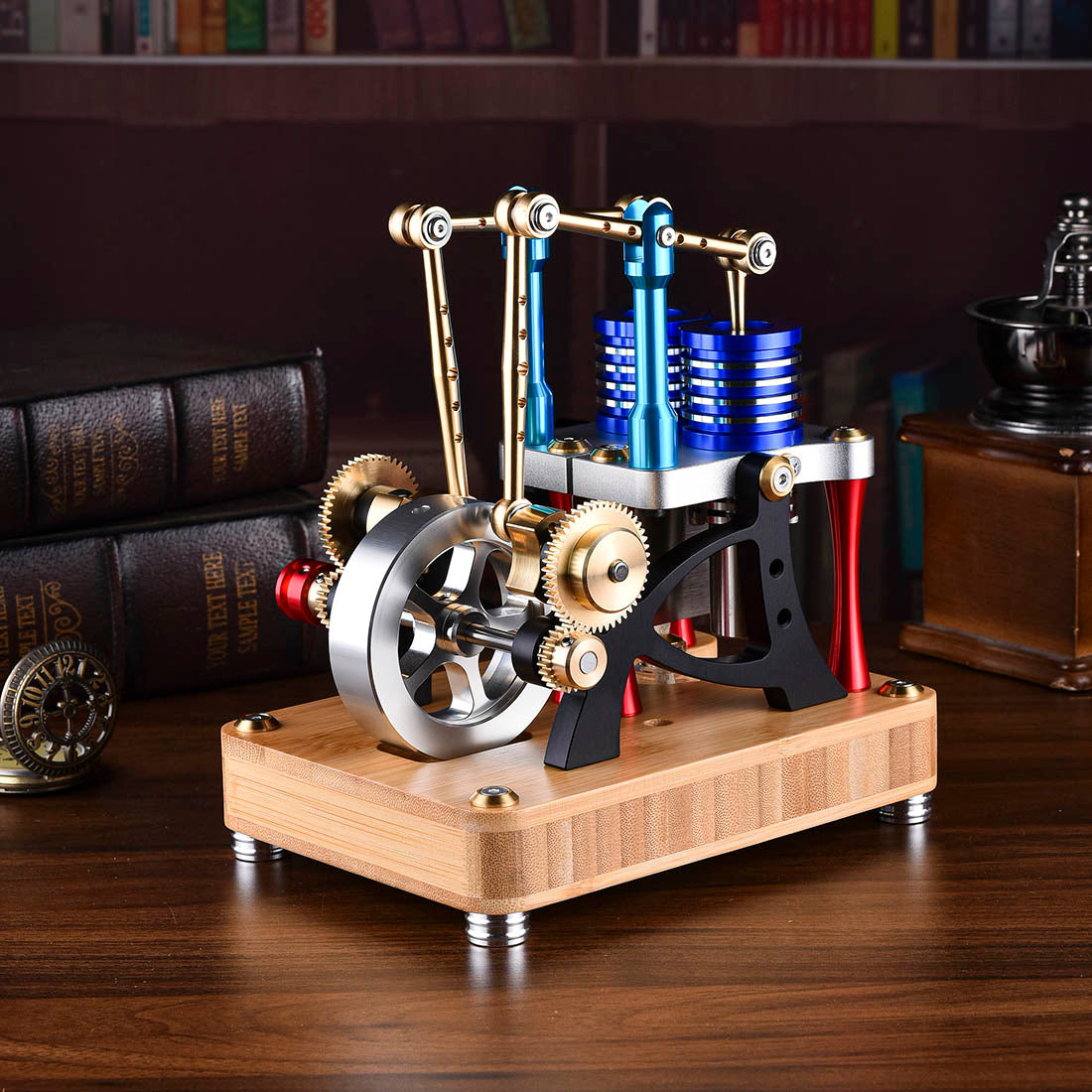

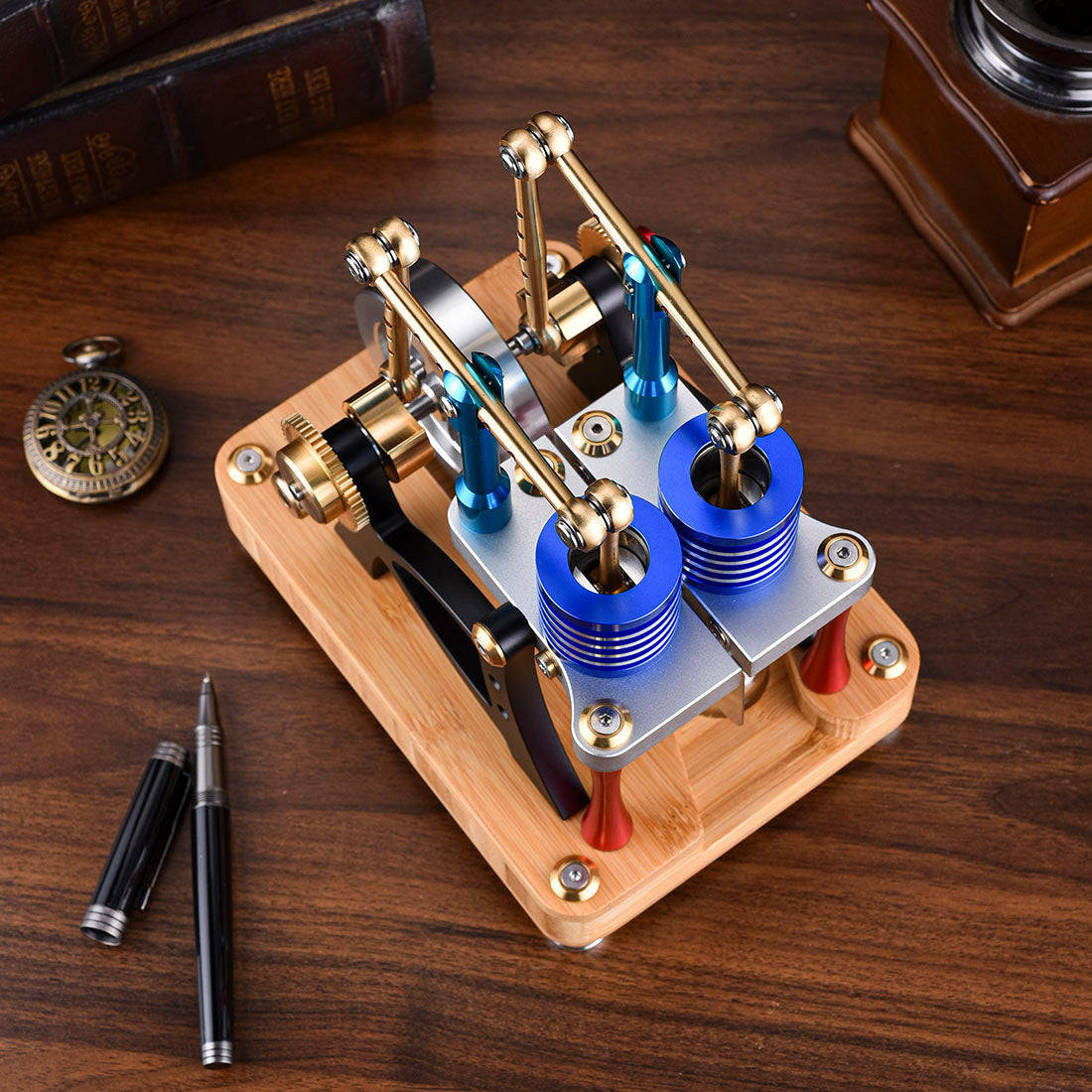

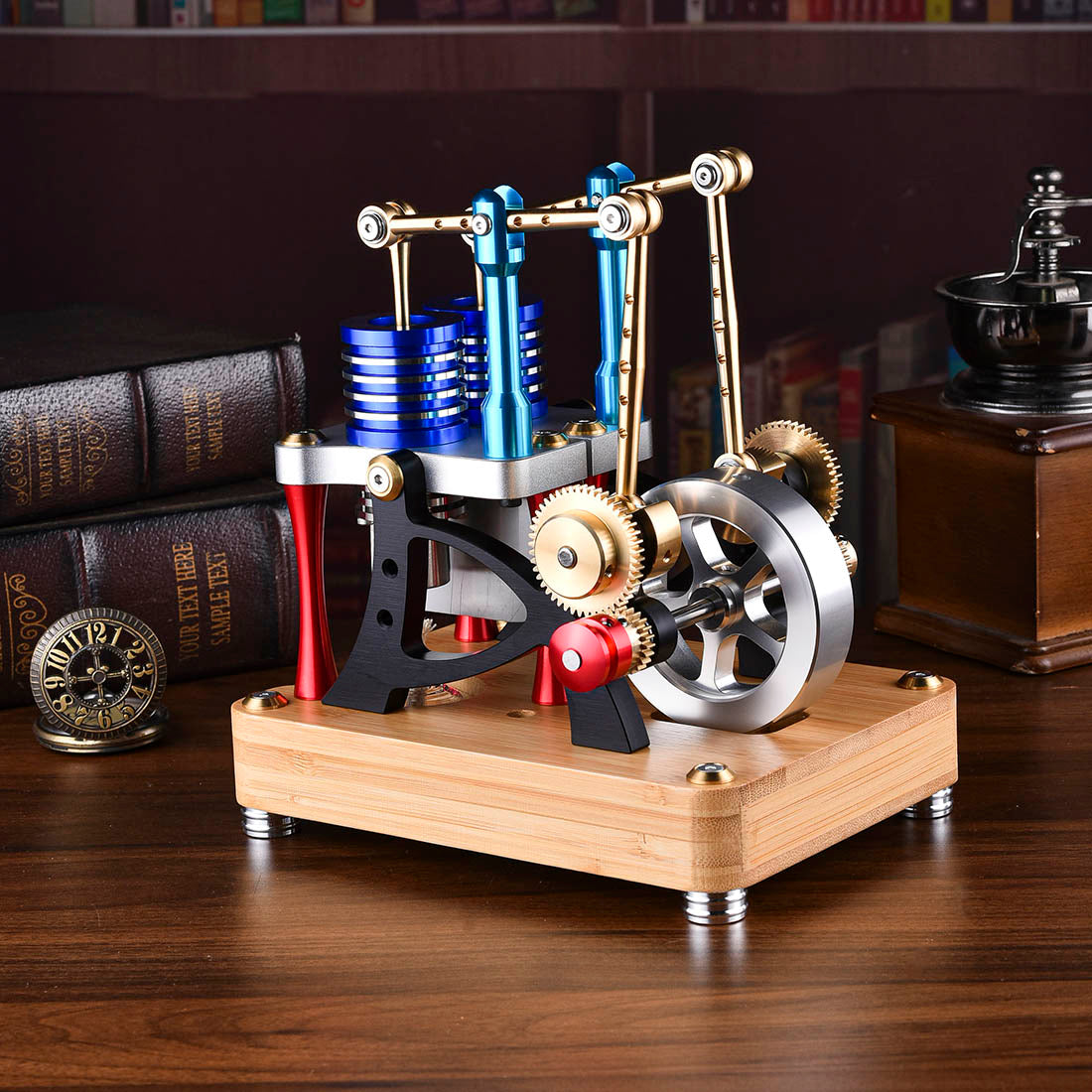

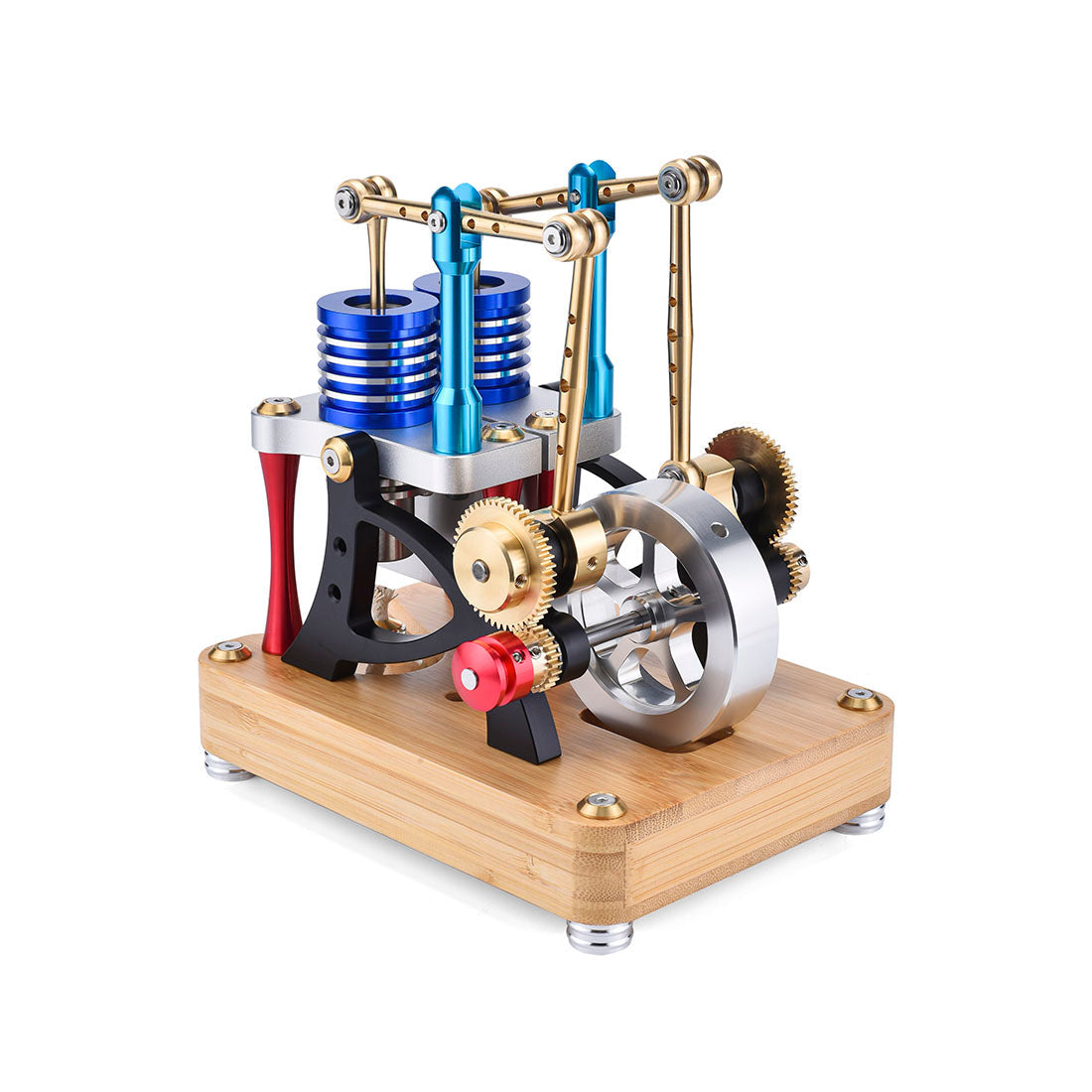

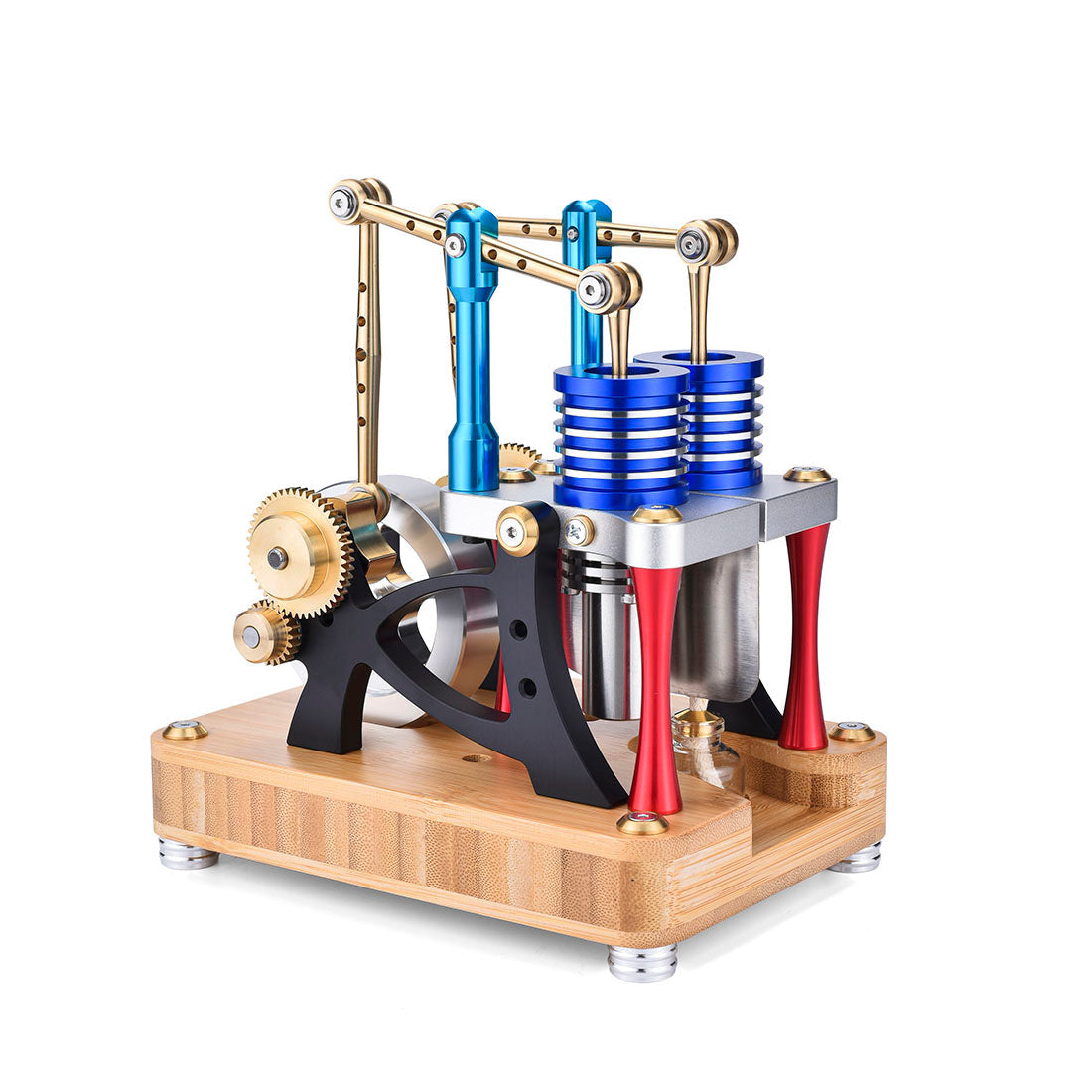

Alpha Balance Beam Dual-Cylinder Dual-Piston Stirling Engine Model

Experience the mesmerizing harmony of physics, engineering, and high-end craftsmanship. The Alpha Balance Beam Dual-Cylinder Dual-Piston Stirling Engine is a heavy-duty, fully functional mechanical masterpiece. Operating on the advanced $\alpha$-type configuration, this engine converts pure thermal energy into breathtaking kinetic motion, serving as the ultimate testament to precision manufacturing.

Constructed from premium aerospace-grade metals and set upon a beautiful bamboo base, this finished, ready-to-run version is designed for mechanical enthusiasts, educators, and collectors who demand nothing less than engineering perfection.

How It Works: The Power of a 500°C Temperature Gradient

Unlike standard Stirling models, this advanced $\alpha$-type configuration features two completely independent, identical vertical cylinders working in tandem. One side is dedicated to rapid heat generation, while the other handles rapid cooling—yet both cylinders generate power simultaneously.

During continuous operation, the heating side climbs up to 600°C, while the highly efficient cooling side maintains a steady 50°C even after 20 minutes of running. This massive 500°C+ temperature differential provides an incredibly powerful, continuous source of kinetic energy.

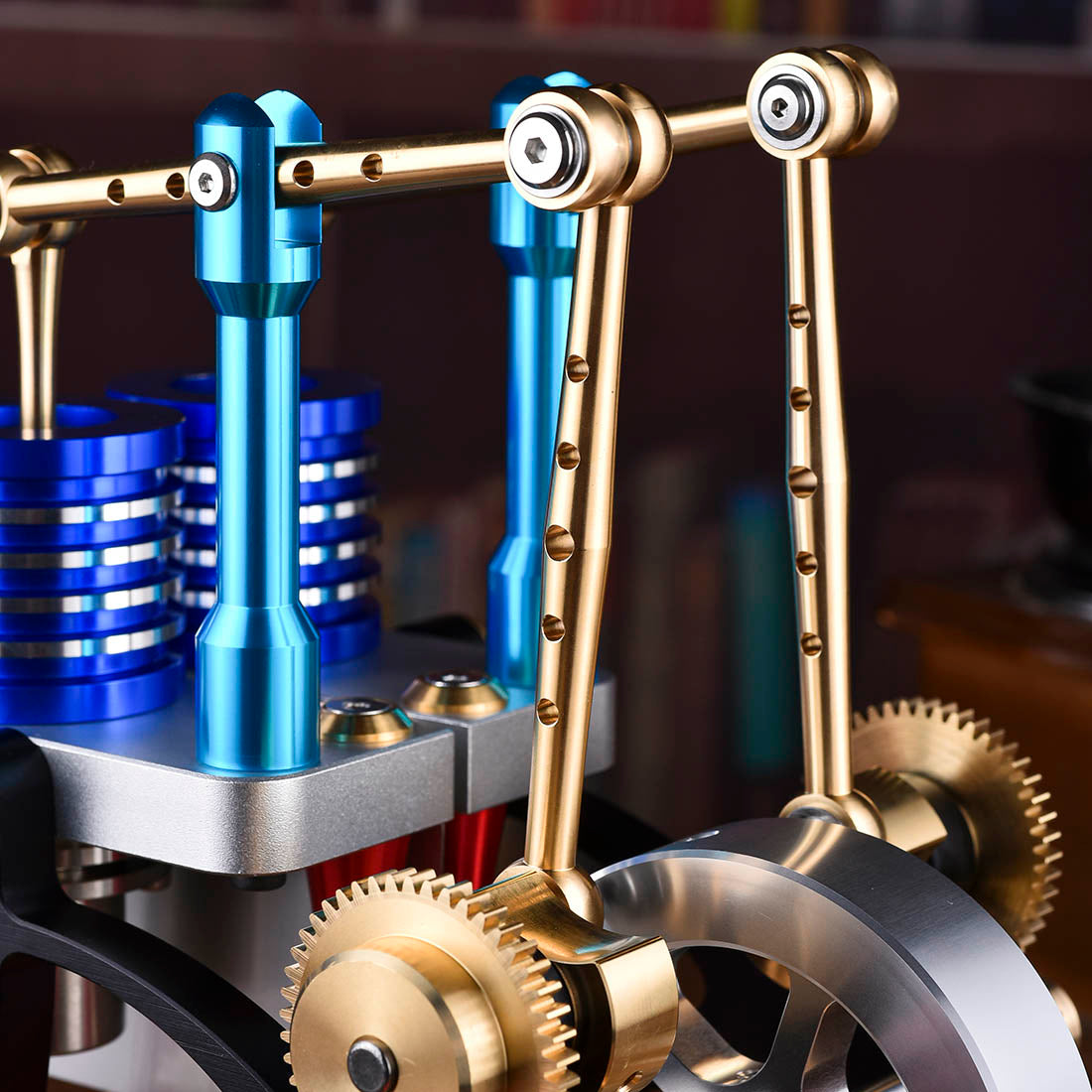

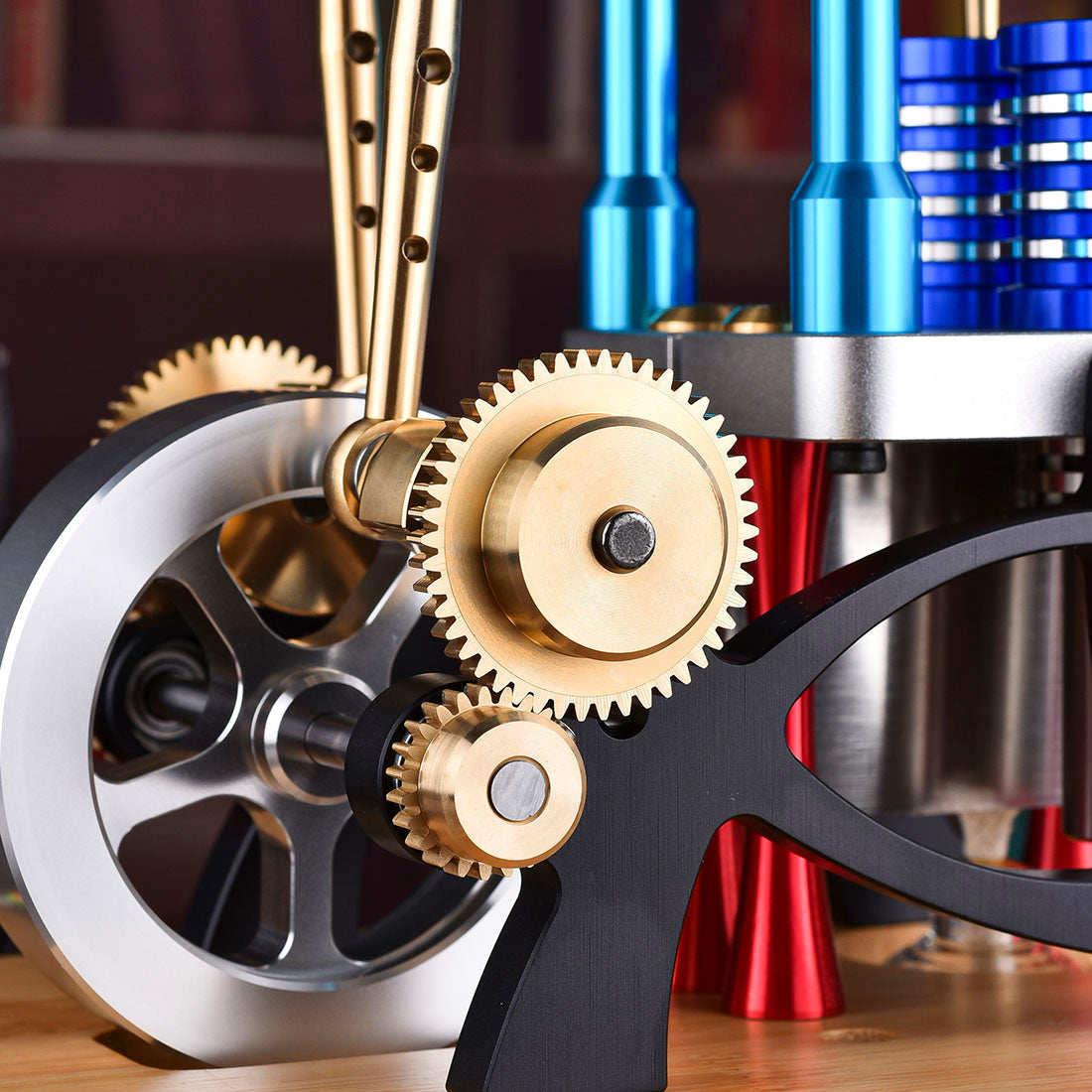

To maximize stability, the two cylinder connecting rods interact through a precision gear system with a 2:1 ratio. When the crankshaft reaches a blistering 1000 r/min, the heavy-duty, 78 mm flywheel spins at a thrilling 2000 r/min, utilizing strong rotational inertia to deliver an exceptionally smooth, quiet, and vibration-free performance.

Key Features

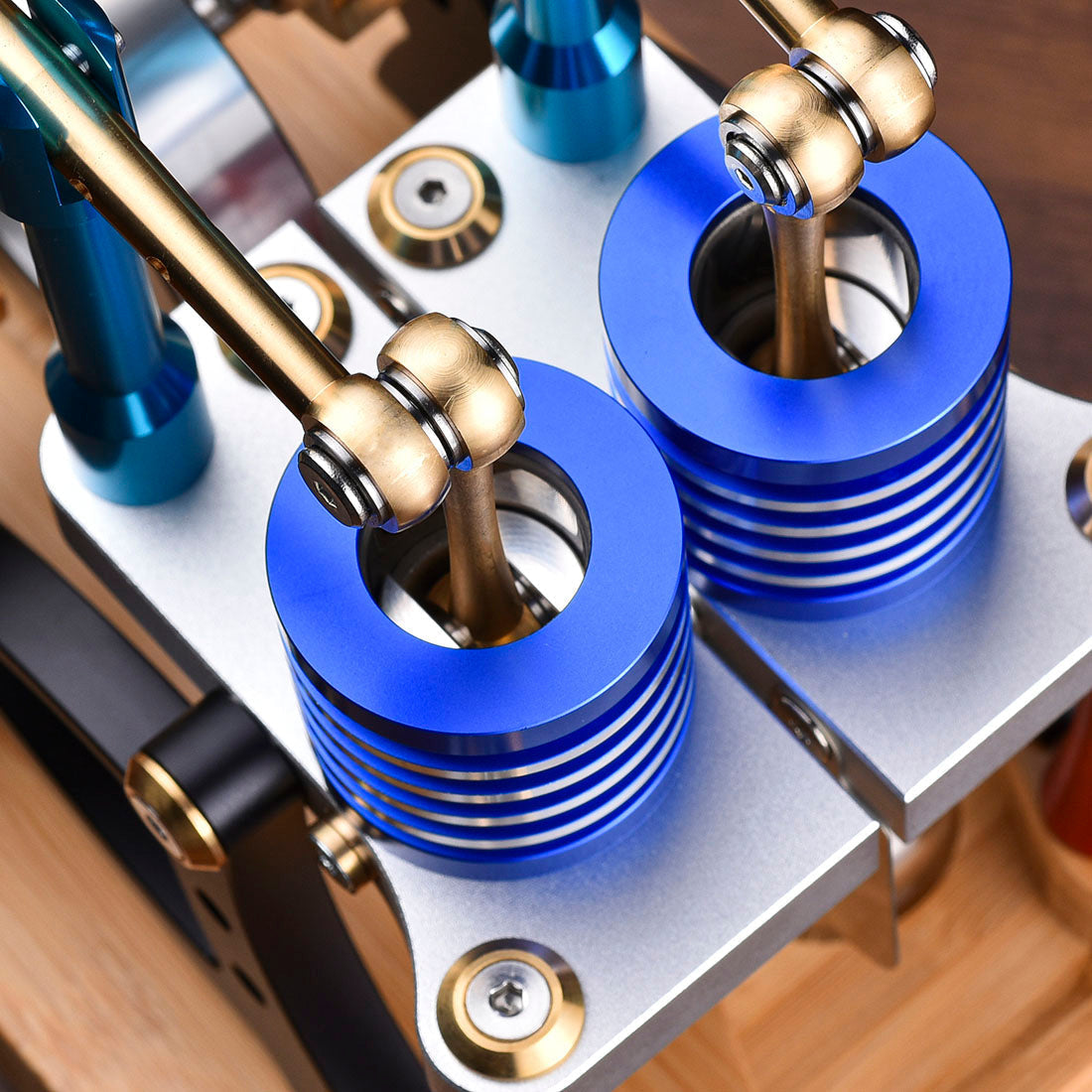

• Advanced $\alpha$-Type Dual-Cylinder Configuration: Separated hot and cold vertical cylinders isolated by stainless steel heat insulators, maximizing heat transfer efficiency and thermal power output.

• Micro-Precision Aerospace Engineering: The cylinder and piston liners are forged from legendary GCR15 bearing steel, CNC-machined, and quenched to an extreme hardness of 58-62HRC. Ground to a razor-thin tolerance of $\pm$0.005 mm, it ensures a near-flawless airtight seal for maximum thermodynamic compression.

• Ultra-Smooth 30-Bearing System: To achieve an incredibly quiet, friction-defying run, the entire engine is structurally supported by 30 precision bearings (including 14 specialized performance bearings).

• Exquisite Luxury Materials: Crafted from a striking blend of solid stainless steel, polished brass, and dual 10 mm heavy-duty aluminum alloy brackets, all anchored beautifully on a sustainable, anti-vibration bamboo base.

• Finished Masterpiece: This is the fully assembled, finished version—no tedious building required. Simply fill the alcohol lamp, light it, give the flywheel a manual turn, and watch physics come alive.

📐 Technical Specifications

• Model Name: Alpha Balance Beam Dual-Cylinder Dual-Piston Stirling Engine

• Product Form: Finished Version (Fully Assembled)

• Material Composition: Stainless Steel, Solid Brass, Aluminum Alloy, Sustainable Bamboo

• Product Weight: 2.2 kg (Heavy, ultra-stable desktop footprint)

• Product Dimensions: 190 × 138 × 200 mm

• Heating Tube Inner Diameter: 20 mm

• Piston Diameter / Stroke: 20 mm / 20 mm

• Flywheel Diameter / Weight: 78 mm / 155 grams

• Pulley Diameter: 20 mm

• Total Bearing Count: 30 Precision Bearings

• Starting Method: Manual Start (Hand-cranked assist)

• Cylinder Liner Inlay: Dual 2.5 mm Liners

• Recommended Age: 16+

Multifunctional Applications

• The Ultimate STEM Educational Tool: Provides an unforgettable, hands-on demonstration of thermodynamics, mechanical gear ratios, and green energy principles.

• High-End Desktop Decor: A sophisticated conversation starter for executive offices, laboratories, or home libraries.

• DIY Power Generation: The integrated 20 mm pulley allows you to connect the engine to a small external generator to light up LED bulbs or power small gadgets.

📦 Packing List

• Alpha Balance Beam Stirling Engine (Finished Version) × 1

• Specialized Glass Alcohol Lamp × 1

• Comprehensive Operations Manual × 1

⚠️ Safety Note: This product is recommended for users aged 16 and older. The heating cylinder reaches extreme temperatures up to 600°C. Please operate in a well-ventilated space away from flammable objects, and do not touch the heated components during operation.
